Products Name：
HNPCC-100 Gas
Vacuumizing Device
Overview

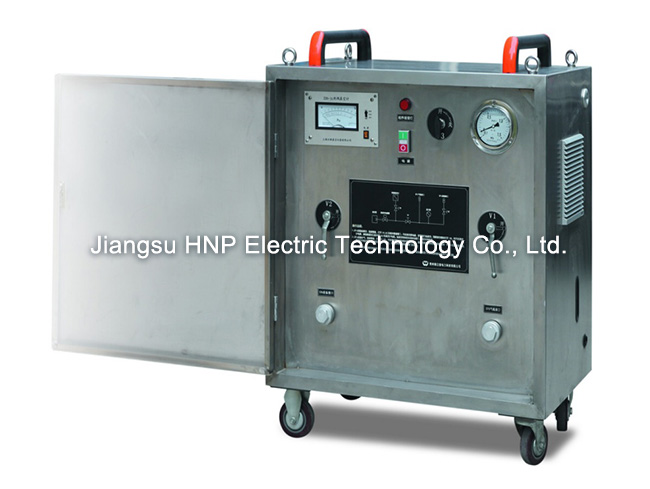

The HNPCC-100 vacuumizing device is mainly used for vacuumizing
measurement etc. during installation, operation and maintenance of porcelain
column type SF6 circuit breakers, transformers and other SF6electric appliances. The HNPCC100 is a compact SF6 gas filling and
vacuumizing device, which is installed on a very firm metal frame, and can
travel freely even on the gravel road with four pneumatic tires. The SF6gas filling and vacuumizing device contains: vacuum pump, vacuum gauge,
electromagnetic vacuum device (anti-oil return V1), regulating valve, gas
piping, and valves and instrumentation control parts necessary for maintenance
of SF6 circuit breakers.
l Fast vacuumizing and optional vacuumizing speed
l Easy to move on site with heavy duty pneumatic tires
l With gas filling branch, no need to remove the piping frequently for
gas filling
l Digital Pirani vacuum gauge
l Reasonable and firm structure, and long service life
l Effective anti-oil return with electromagnetic vacuum device
Technical Indexes
Vacuumizing speed | 40m3/h
or optional |
Final vacuum | ≤10pa |
Leakage rate | ≤0.5% |
Total weight | <150kg |
Supporting
pipeline | 5m DN8
hose |
Vacuum gauge | Pointer
or digital |
Supply voltage | AC
380V |
Device Power | ≤2.8kW |
