Products Name：

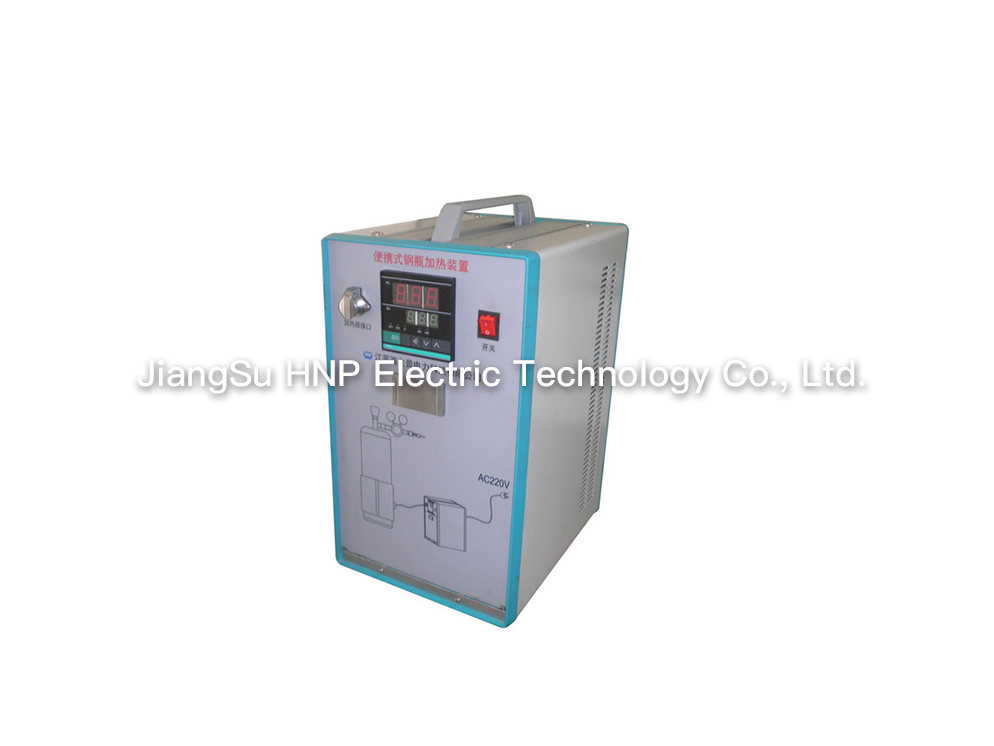

HNPJR-110 Steel Cylinder Heating Device
Overview
When filling gas into the GIS, the liquid sulfur hexafluoride in the steel cylinder starts gasification and heat absorption due to pressure reduction, but the moisture in the environment adsorbed on the surface of the steel cylinder condenses into “ice armor” to make gasification of the sulfur hexafluoride liquid slow or even impossible, thus greatly reducing the gas filling efficiency. In many cases, alcohol torches are used to heat the steel cylinders, but this method is not safe and wastes manpower.
In order to solve this problem, we have developed a series of cylinder heating devices in conjunction with a number of power transformation specialist engineers. The HNPJR-110 steel cylinder heating device is an upgrade of the blanket-type heating device. With organic integration of various functional heating components, this device is easy to carry, has improved safety configuration, and is more in line with the electric power department’s accident prevention measures.
Main Features
Fast heating and uniform temperature with nickel-chromium alloy resistance wire
Good heat resistance and thermal insulation with double composite insulation of silicone rubber and glass fiber
High thermal efficiency with flexible shape to closely contact the steel cylinder
Easier to carry with portable design
Standard high-precision digital temperature controller
Standard leakage protection vacuum switch
Armored power cord to effectively prevent the steel cylinder from being crushed on site
Technical Parameters
Dimensions | About 370mm×280mm×520mm or to be customized according to customer requirements |
Power | 500W or subject to dimensions and heating requirements |
Shape | Portable |
Power supply | AC 220V or AC 380V |
Thermal efficiency | >200kcal or subject to power |
Weight | About 7kg or subject to dimensions |
Temperature control system | ≯120°C or adjustable |
Working environment | -60°C~60°C |
